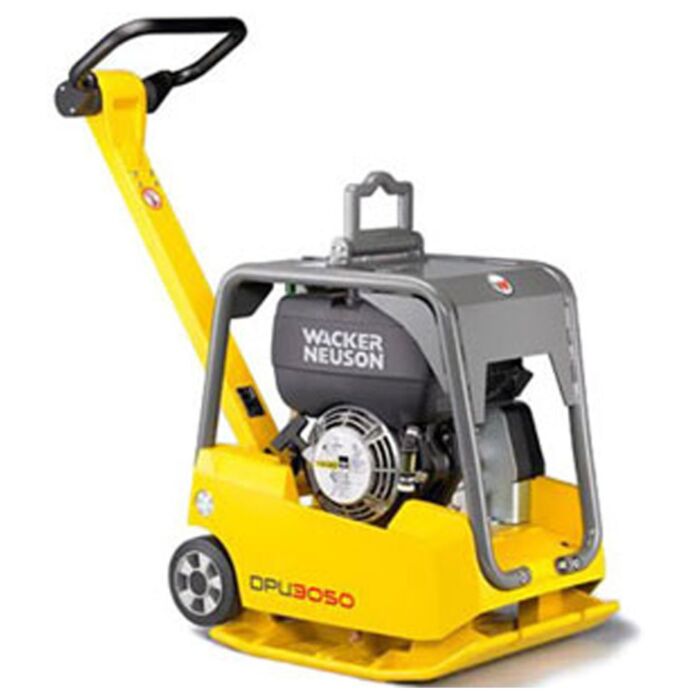

Wacker Neuson DPU3050HE Reversible Plate 500mm/20 inch Electric Start

SKU: 5000610298

Availability: Available

Excl. Tax: £4,528.00 Incl. Tax: £5,433.60
OR

Quick Overview

ELECTRIC START - RELIABLE HATZ DIESEL ENGINE

Reliable vibratory plates with "mobility warranty"
These all-rounders for applications such as interlocking paving stones, service trenches, gardening and landscaping architecture as well as maintenance jobs are the only vibratory plates with integrated wheel sets for maximum mobility. These plates are also extremely reliable. Their robustness as well as the sum of many well thought out details make sure of this. Amongst these details we find the throttle lever that retracts for its protection or an especially job site oriented fuel tank pipe. And then there is a kind of “mobility warranty”, because the wheel set is not only always ready for use but also extremely long-lasting.

See below for full details:

Wacker Neuson DPU 3050HE Reversible Vibratory Plate 30kN 50cm/20in 5000610298

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

-
Purchase Price - Total Repayable -
Deposit - Duration of Agreement -
Amount of Credit - Rate of Interest (fixed) -%
- Monthly Payments - -% APR Representative
Red Box Manufacturing Ltd. acts as a credit intermediary and only offers credit products from Pay4Later Ltd and Secure Trust Bank PLC.
Credit provided subject to age and status.

We offer a wide range of finance options


%

Details

  • dotElecrtic Start System Ultimate ease of starting and use.
  • dotUnique! Integrated wheel set, extremely robust, even hot asphalt and sharp/curbstone drops will not damage the wheels.
  • dotEngine protection by way of an extra long fuel filler neck: reduces the risk of dirt particle infiltration during the refueling process.
  • dotProtection against transport damages by way of the automatic self-latching, zero backlash guide pole.
  • dotEasy changing of working locations: collapsible and rotary central lifting point for most of the transport devices commonly used on job sites.
  • dotExtremely durable, even under extreme conditions: base plate manufactured out of GJS-700 (spherulitic graphite iron). The best combination for a high resistance to breaking and low wear.
  • dotFatigue-proof and precise workmanship thanks to the control handle damping and the integrated lateral control.

Technical Data

Description Data
Operating weight 206 kg
Shipping Weight incl. Packaging 218.8 kg
Shipping Size L x W x H 765 x 660 x 1300 mm
Baseplate (W x L) 500 x 703
Working Width 500 mm
Machine Height 777 mm
Working Height of Handle 800 - 1143 mm
Baseplate Thickness 10 mm
Max. Centrifugal Force 30 kN / 6750 lbf
Vibration Frequency 90 Hz / 90 vpm
Max. Forward / Reverse Travel 21 m/min
Max. Gradeability (depending on soil) 30%
Compacted Area (depending on soil) 630 m2/h
Engine Hatz 1B30 Air-Cooled Single Cylinder Diesel Engine
Starting System Electric
Max. Rated Power @ Rated Speed* 5.4 kW / 6.8 hp @ 3600 rpm
Power Rating Specification DIN ISO3046
Rated Power Output 1.9 kW / 2.55 hp @ 2800 rpm
Displacement 347 cm3
Fuel Consumption 0.6 litres/h
Tank Capacity 5 litres
Max. allowable tilt of engine in continuous operation 25°
Power Train from drive engine via centrifugal clutch and V-belt directly to the Exciter
Specifications may change due to continuous product development.
* Actual power output may vary due to conditions of specific use

Additional Information

Condition New
