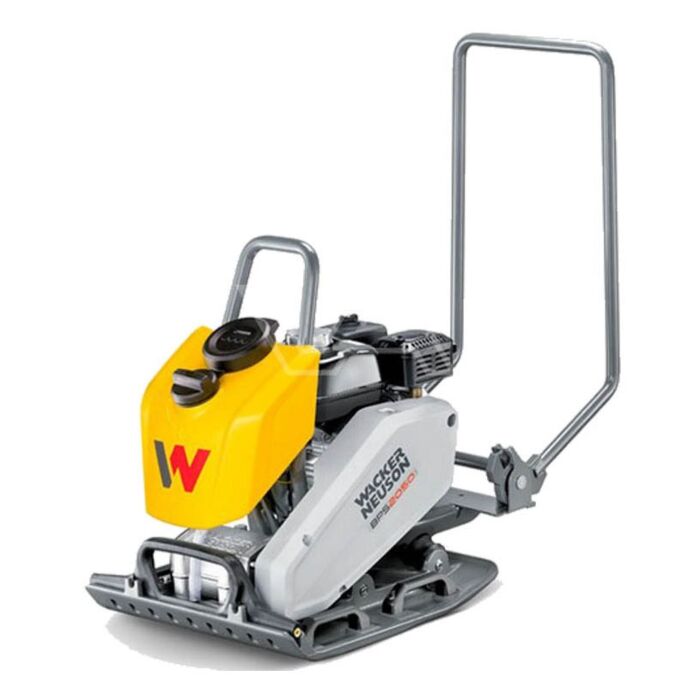

Single-direction vibratory plate
Excellent handling and maneuverability on soil and asphalt
The BPS series is distinguished by its outstanding handling capabilities. Moving and turning these vibratory plates on fresh asphalt is unsurpassed in comfort and produces clean finishes with no marks. Even clean finishes at curbs are easy to produce due to the angular side edges of the base plate. The guide handle responds precisely to steering movements while still achieving low hand-arm vibrations of less than 5 m/s², which makes long and comfortable working conditions possible.
Comes with Water kit
| Mechanical - Output Details | |
|---|---|
| Centrifugal force | 20 kN |
| Vibrations | 5.8800 1/min |
| Transmission | Centrifugal Clutch - V-belt |
| Area capacity | 7,500 m2/h |
| Forward running | 250 m/min |
| Gradeability | 364% |
| Vibrations (Hz) | 980 Hz |
| Standard Support Plate | without Support Plate |
| PQ Class | 1 |
| Hauc Class | 1.4000 - 1.8000 kg/m2 |
| Mechanical Details | |
| Length Drawbar in op. pos. | 9,700 mm |
| Length Baseplate | 5,990 mm |
| Width | 5,000 mm |
| Width Baseplate | 5,000 mm |
| Height | 6,630 mm |
| Height Cover frame | 6,630 mm |
| Height Crane hook | 6,630 mm |
| Thickness Baseplate | 90 mm |
| Thickness Baseplate min. | 30 mm |
| Operating weight | 94.1 kg |
| Ground clearance | 6,630 mm |
| Contact area | 64.1270 mm2 |
| Engine | |
| Effective power | 36 KW |
| Nominal Engine speed | 3.6000 1/min |
| Environment Data | |
| Storage temperature range | -15 - 40 °C |
| Operating temperature range | -15 - 45 °C |
| Operational altitude max. | 1.5000 m NN |
| Sound level LpA | 950 dB(A) |
| Sound power LWA, measured | 1,070 dB(A) |
| Sound power LWA, guaranteed | 1,080 dB(A) |
| Sound power LWA (Standard) | EN 500-4 |
| HAV summation (average value) | 41 m/s2 |
| HAV summation (Standard) | EN 500-4 |
| Uncertainty in measurement HAV | 5 m/s2 |
