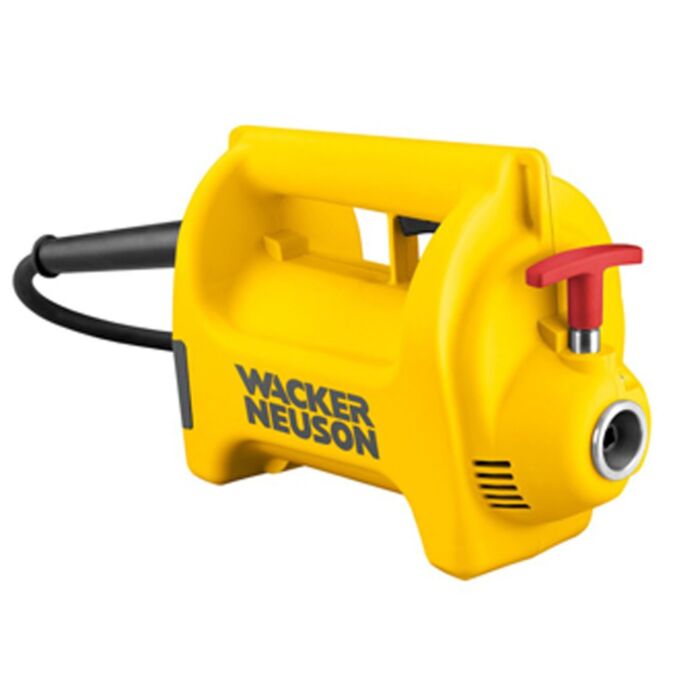

The Wacker Neuson HMS system is extremely versatile. These high frequency flex-shaft internal vibrators can be adapted to every type of application. Heads and shafts can be easily combined and rapidly exchanged to match the right equipment to the job. Unique hybrid heads offer optimum concrete consolidation and movement. Wacker Neuson HMS systems provide reliable performance and quality concrete.
Extremely durable thanks to the sturdy, break-proof high impact plastic housing.
Ideal to transport thanks to the compact form, low weight and ergonomic handle.
All-around protected against splash water.
Meets the highest safety standards.
5 meter rubber power cable for large freedom of movement when working.
Extremely flexible and at the same time maximum sturdiness.
Extremely long service life of the carbon brushes (up to 500 operating hours).
Air cleaner replacement takes place from the outside with just one screw.
Reduce maintenance intervals The replacement or cleaning of the filter is possible directly on the construction site.
Electric motor with 1.8 kW performance and 5.9 kg weight
| Description | Data |
| Vibrations rpm | 12,000 |
| Engine / Motor | Double insulated universal motor |
| Voltage | 120 V |
| Rated Amperage | 15 A |
| Frequency | 50 / 60 hz |
| Power kW | 1.8 |
| Weight kg | 5.4 |
| L x W x H mm | 312 x 154 x 230 |
| Power Cable | 0.5 |
